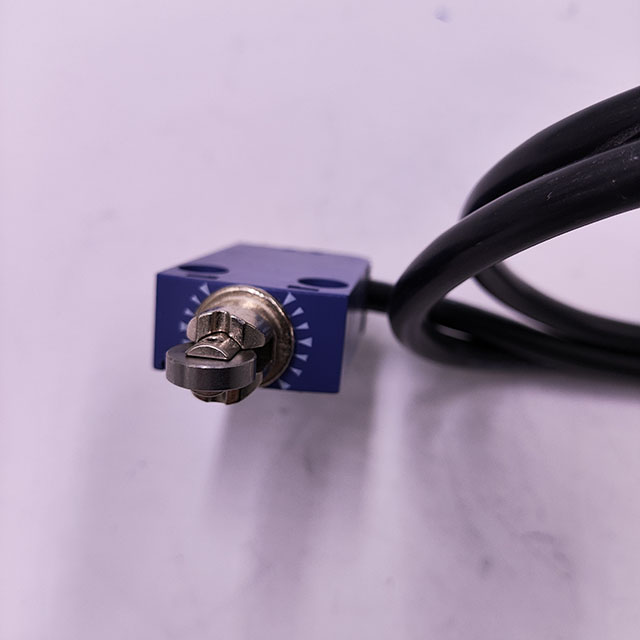

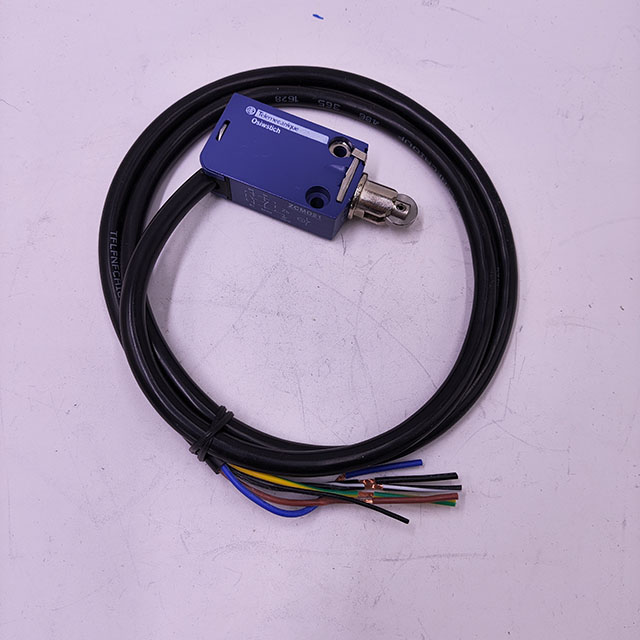

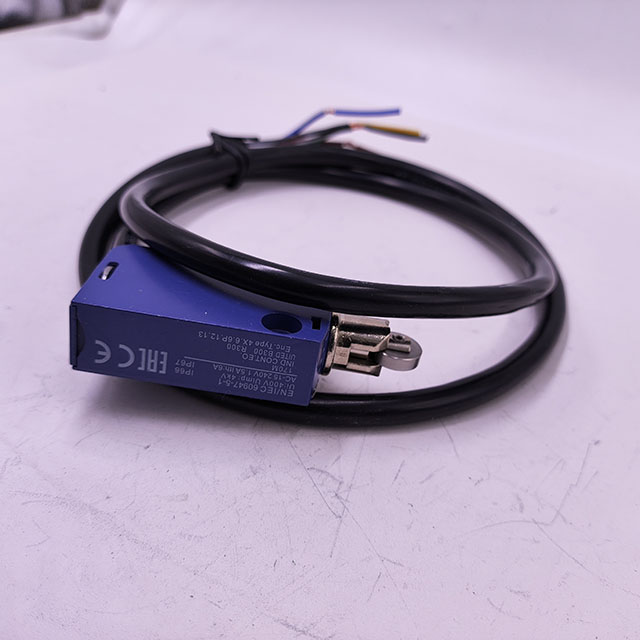

Telemecanique Sensors Osiswitch XC Series Plunger Limit Switch, NO/NC,IP66,IP67,IP68,DP,Zinc Alloy Housing,240V ac

Jan 15, 2024

Product Details

Osiswitch miniature limit switches


40 % time-saving on electrical connection.
Fully interchangeable heads.

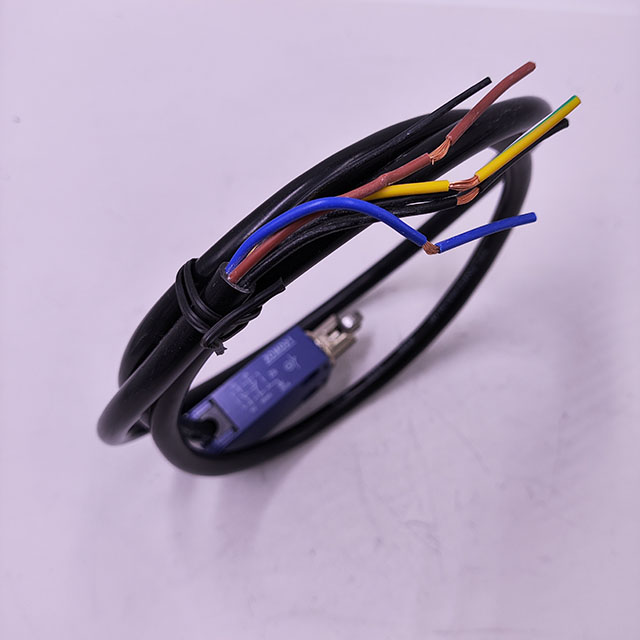

Pre-wired (1 metre).

Standards

EN50047

Price:US$25.00-US$50.00

Specifications

Attribute
Value
Actuator TypePlunger
Pole and Throw ConfigurationDP
Normal State ConfigurationNO/NC
IP RatingIP66, IP67, IP68
Maximum Current1.5A
Housing MaterialZinc Alloy
Maximum AC Voltage240V
Maximum DC Voltage250V
Connection TypeCable
SeriesOsiSense XC
Action TypeSnap Action
Length50mm
Depth16mm
Width30mm
Maximum Operating Temperature+70°C
Minimum Operating Temperature-25°C
Mechanical Life10000000Cycles
